Why Proper Cable Clip Installation Matters for Electrical Safety and Compliance
Proper cable clip installation is fundamental to electrical safety and regulatory compliance in any installation project. When cables are not securely fixed in place, they become vulnerable to movement, strain, and potential damage that can compromise the integrity of electrical systems. Loose or improperly installed cables may lead to insulation wear, conductor exposure, and increased fire risk—hazards that are entirely preventable with correct fixing techniques.
For electrical installers and contractors, meeting the requirements of BS 7671 (IET Wiring Regulations) and building regulations is not optional. These standards mandate that cables must be adequately supported at appropriate intervals to prevent undue stress and mechanical damage. Fire safety compliance is equally critical, particularly in commercial and public buildings where fire performance of cable fixings directly impacts life safety systems. Using properly installed cable clips ensures that installations meet these stringent requirements whilst providing long-term reliability.
Beyond compliance, professional cable management reflects the quality of workmanship and contributes to easier maintenance and fault-finding throughout the installation's lifetime. Securely fixed cables present a neat, organised appearance that instils confidence in clients and facilitates future electrical work. The right installation tools and techniques are essential to achieving these professional standards consistently across every project.
Understanding the LINIAN Insertion Tool and Its Key Features

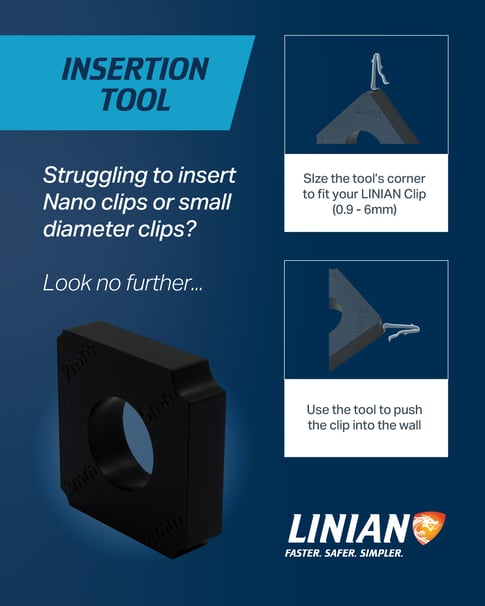

The LINIAN Insertion Tool is a specialist setting tool designed specifically for the efficient installation of LINIAN cable clips ranging from 0.9 to 6 mm. This purpose-built tool addresses the practical challenges faced by electrical installers when fixing small-diameter cables, including LINIAN Nano Clips and FireClips under 6mm. Manufactured in Britain and bearing the UKCA mark, the tool represents a commitment to quality and compliance with UK standards.
Constructed from thick poly-propylene material, the Insertion Tool offers exceptional durability whilst remaining lightweight and comfortable for extended use throughout the working day. The robust construction ensures the tool maintains its structural integrity even under repeated use on demanding installation projects. This material choice provides the perfect balance between strength and ergonomics, reducing installer fatigue whilst delivering consistent performance.
The tool's design philosophy centres on simplicity and reliability. With one simple push action, installers can be confident that the clip is fully seated and the cable is held tight and secure in place. This straightforward operation eliminates guesswork and ensures consistent results regardless of installer experience level. The versatility to accommodate cable clips from 0.9 to 6 mm makes it an essential addition to any electrical installer's toolkit, reducing the need for multiple tools and streamlining the installation process.
Step-by-Step Guide to Installing Cable Clips with the Insertion Tool
Successful cable clip installation begins with proper preparation. Start by ensuring the mounting surface is clean, dry, and suitable for the fixing method being used. Measure and mark the cable run, determining appropriate spacing intervals according to BS 7671 requirements—typically 300-400mm for horizontal runs and 400mm for vertical runs, though this varies depending on cable type and installation conditions. Position the cable along the marked route and identify each fixing point clearly.
Select the appropriate LINIAN clip size for your cable diameter. LINIAN Nano Clips and FireClips are available in specific size ranges to ensure optimal cable retention without over-compression. Place the clip at the marked fixing point, positioning it over the cable. Take the LINIAN Insertion Tool and align it with the clip, ensuring proper engagement before applying pressure.
Apply firm, steady pressure on the Insertion Tool with one simple push action. You will feel the clip fully seat into position, confirming complete installation. The tool's design ensures the clip engages properly with the mounting surface whilst securing the cable firmly in place. There is no need for hammering or excessive force—the tool's mechanical advantage provides the precise pressure required for reliable fixing. Once installed, visually inspect each clip to confirm the cable is held securely without visible movement. Repeat this process for each fixing point along the cable run, maintaining consistent spacing and alignment for a professional finish.
Best Practices for Achieving Professional Results Every Time
Achieving consistently professional results with the LINIAN Insertion Tool requires attention to several key practices. Always verify that you have selected the correct clip size for your cable diameter before commencing installation. Using clips that are too small may damage cable insulation, whilst oversized clips will not provide adequate cable retention. LINIAN's comprehensive size range ensures the right solution. Proper size selection is the foundation of secure fixing.
Maintain consistent clip spacing throughout your installation according to the specific requirements of BS 7671 and any additional project specifications. Use a measuring tape or pre-marked spacing guide to ensure uniform intervals, which not only meets regulatory requirements but also creates the neat, professional appearance that distinguishes quality workmanship.
Store your LINIAN Insertion Tool properly to maintain its performance characteristics. Keep the tool clean and free from debris that might affect its operation, and inspect it periodically for wear or damage. The durable poly-propylene construction is designed for long service life, but proper care ensures optimal performance throughout the tool's lifetime. Consider keeping the tool readily accessible in your toolkit alongside your LINIAN clips, creating an efficient workflow that minimises time spent searching for equipment. By combining the right tool with proper technique and attention to detail, every installation can achieve the secure, compliant, and professional results that define quality electrical work.
